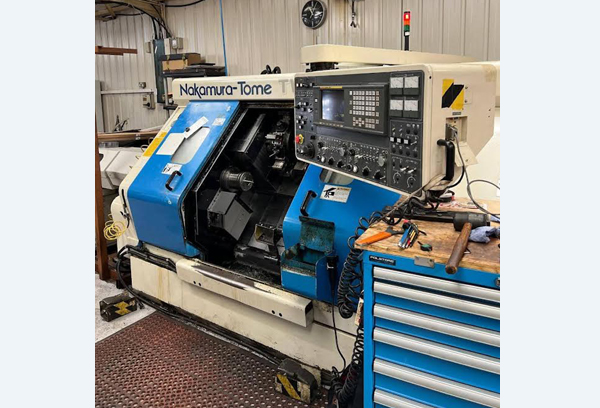

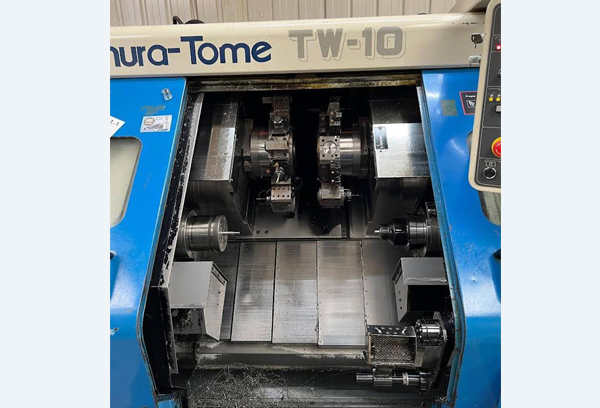

Nakamura Tome TW 10
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Type: Twin-spindle CNC turning center

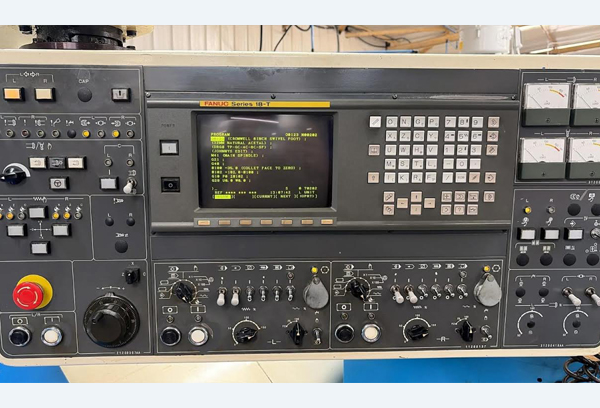

- Control: Fanuc 18-T
- Spindles: Two, with C-axis rotation
- Turrets: Two, each with 12 stations
- Live Tooling: Yes, on both turrets
- Main Spindle Speed: 55–5,500 RPM
- Sub-Spindle Speed: Up to 5,000 RPM
- Max. Turning Diameter: Approx. 130 mm (5.12 inches)
- Max. Turning Length: Approx. 160 mm (6.10 inches)
- Max. Bar Capacity: 34 mm to 42 mm (1.34 to 1.65 inches)
- X-Axis Travel: 180 mm (7.09 inches)
- Z-Axis Travel: 200 mm (7.87 inches) for the first spindle and 620 mm
(24.41 inches) for the second
- Y-Axis Travel: ±30 mm
